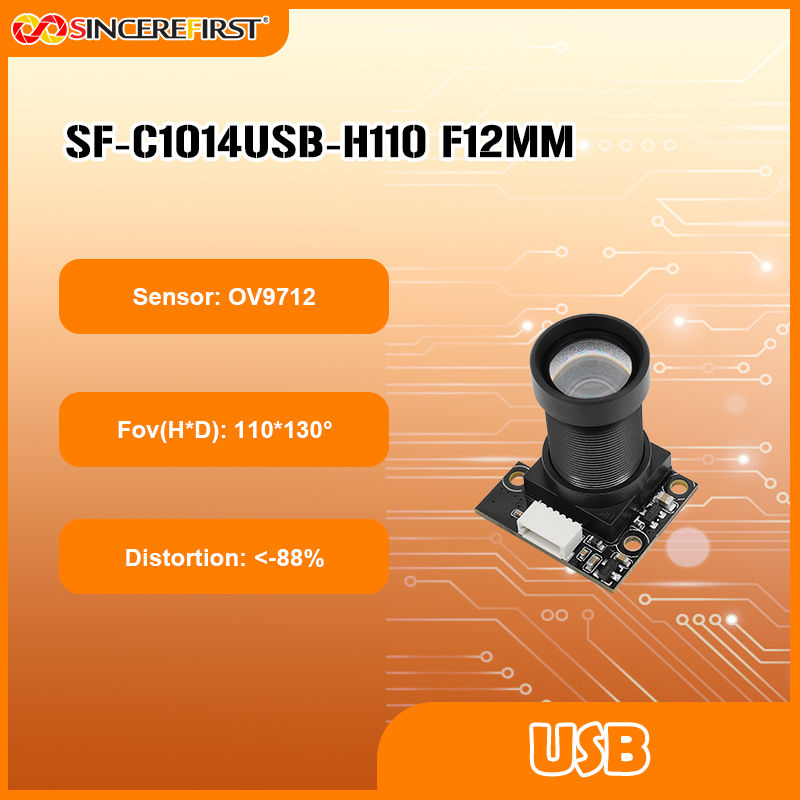

High-Definition Industrial Omnivision OV9712 CMOS Sensor USB2.0 Camera Module

High-Definition Industrial Omnivision OV9713 CMOS Sensor USB2.0 Camera Module

Product Description:

This is high-definition industrial OmniVision OV9713 CMOS sensor USB2.0 camera module, natively supporting 1MP pixels and 30FPS smooth output, perfectly meeting the 1280×720P high-definition imaging requirements. Its 1/4-inch light-sensitive area innovatively adopts a 2.2μm×2.2μm super-large pixel architecture, significantly enhancing the low-light receiving capability. Combined with a 2mm focal length and F2.5 large aperture optical system, it achieves wide-angle coverage of 130°DFOV and 110°HFOV, with a focusing range ranging from 60cm to infinity and fixed focus. Optical distortion is strictly controlled within -88%. The module is plug-and-play via the USB2.0 interface, fully compatible with the UVC protocol and Windows/Linux systems. With a micro package of only 22×19mm, it can be seamlessly embedded in security, conference and smart home devices. In embedded applications, it offers both high cost performance and stable transmission performance, providing reliable image support for machine vision, mobile platforms and industrial inspection.

Features:

1.High-Definition Smooth Transmission: 720P@30fps uncompressed video transmission, with a stable bitrate controlled within 250Mbps, supports dual output formats of MJPEG/YUV, and is compatible with different processing platforms.

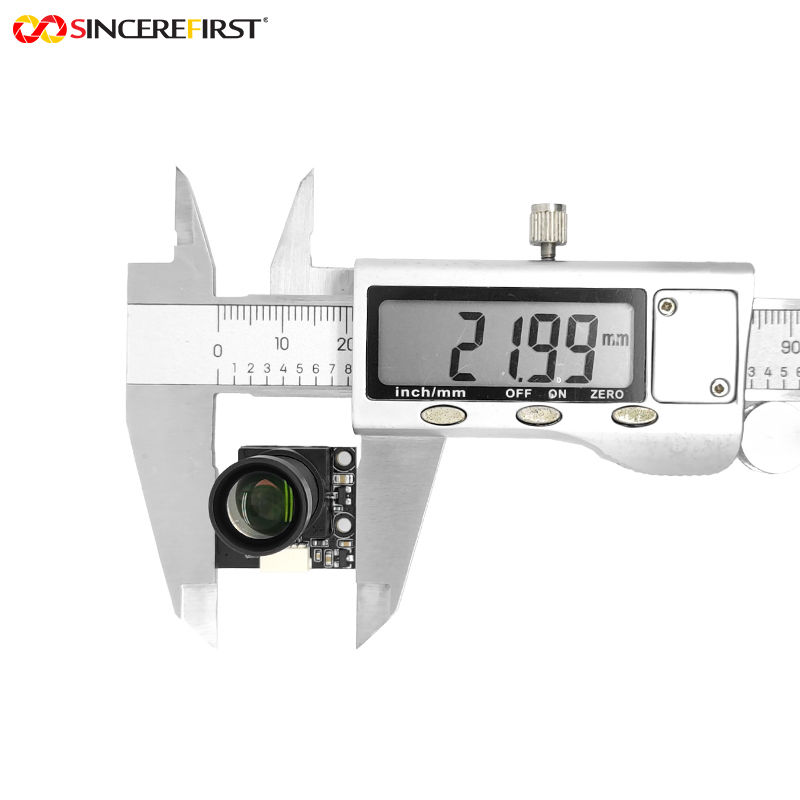

2. Plug-And-Play Compatibility: Certified by the USB2.0 UVC protocol, it can run without driver on Windows/Linux systems. The 22×19mm micro package supports direct replacement of embedded devices.
3. Industrial-Grade Optical Accuracy: The 130° wide-angle lens is corrected for -88% distortion and has a continuous focusing capability of 60cm to ∞, covering 90% of the monitoring scene requirements.

4. Outstanding Low-Light Performance: With a 2.2μm ultra-large pixel design, the light-sensitive area per pixel is increased. Equipped with a 1/4-inch sensor and an F2.5 large aperture, it achieves 0.1Lux low-light imaging.

Technical Parameters:

Applications:

1. Aerial Photography Gimbal: 130° ultra-wide-angle coverage +60cm infinity focus, perfectly suitable for low-altitude shooting from 5 to 50 meters. 3μm large pixels effectively suppress image tearing caused by propeller vibration.
2. Sorting Robot: 720P@30fps high-definition stream ensures 0.05mm level part recognition accuracy, USB plug-and-play feature supports rapid deployment to robotic arm terminals.
3. Vehicle-Mounted Surround-View system: Compact design combined with a wide-angle lens provides a wide field of vision, covering a larger space.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

About US:

Cooperative Brands & Customers:

Why Chooes US:

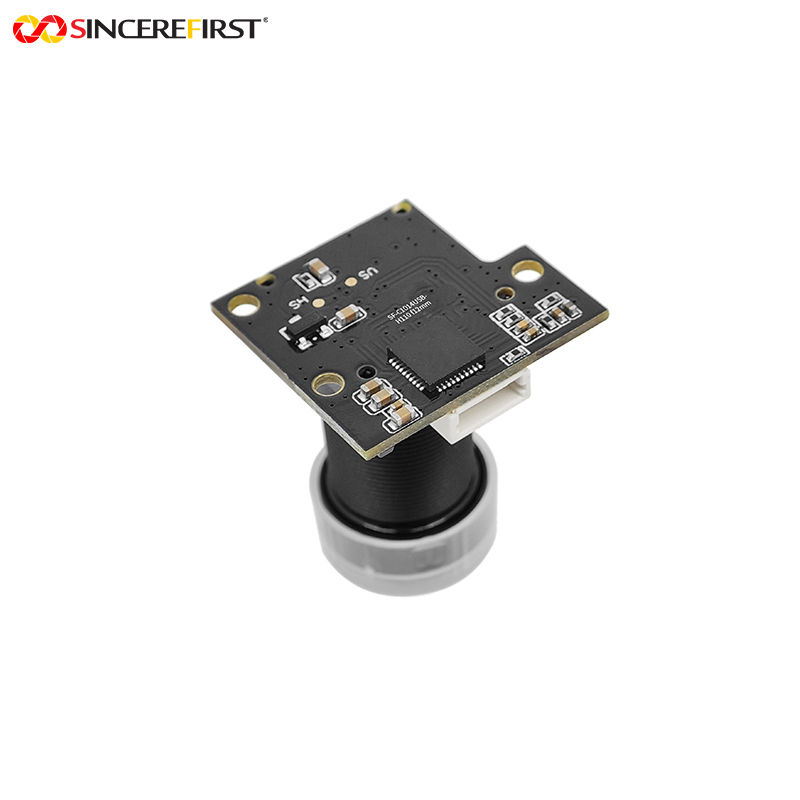

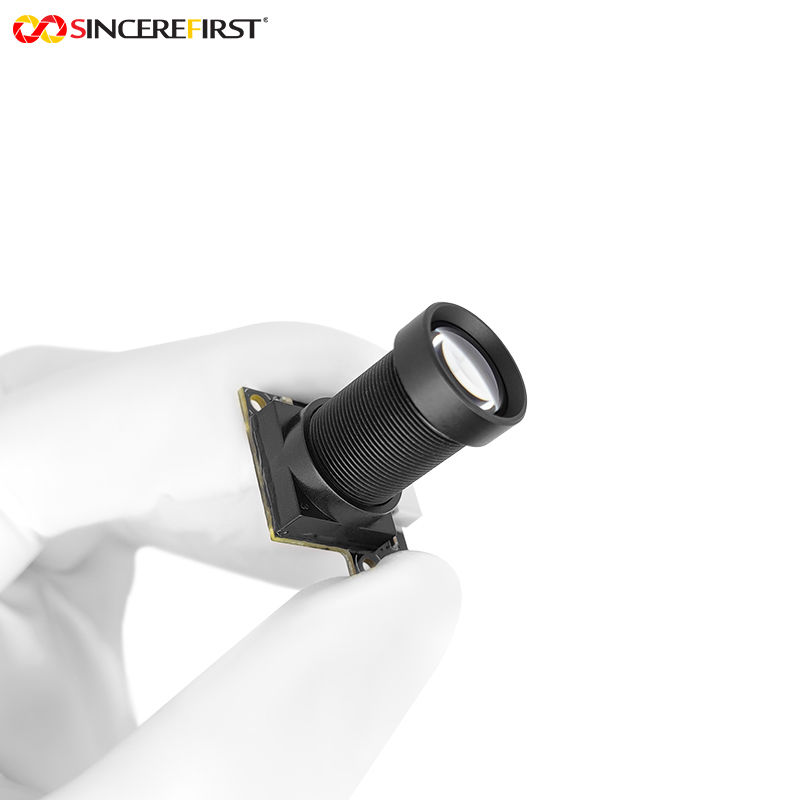

Details Pictures:
